Carbon Steel 6500mm Rotary Pipe Cladding Machines

Brand Name : JINHUA

Model Number : JH-DEG360

Place of Origin : WUXI, JINHUA

MOQ : 1 Unit

Price : USD+2000-50000+Unit

Payment Terms : T/T

Supply Ability : 30+Unit+Per Month

Delivery Time : 15-60 Days

Packaging Details : Wooden Box Package

Machine Type : Rotary Overylay Welding Machine, Rotary Cladding System, Rotary Hardfacing Machine

Condition : New

Material : Carbon Steel, Alloy Steel

After-Sales Service : Engineers available to service machinery overseas, Field installation, commissioning and training, Video technical support, Field maintenance and repair service

Warranty : 1 Year

Color : Yellow, Blue, Customized

Voltage : 220V/380V/400V, 220V/380V/415V/440V/customized, 220V50HZ1P, Optional, 380V or 220V/60HZ /3P (Also According To Your local voltage)

Industries : Cement, Steel, Mining, Power, Security, Agriculture, Recycling

Contact Now

Rotary Overylay Welding Machine, Rotary Cladding System, Rotary Hardfacing Machine

1. Working Principle

The specialized JH-DEG360 Refiner Plate Overlay Welding Machine can carry out the off-line overlay welding to refiner plates by a combination with off-line welding equipment, among which JH-DEG360 inputs rotation and rotary conduction, while the off-line equipment works as welding unit.

2. Component

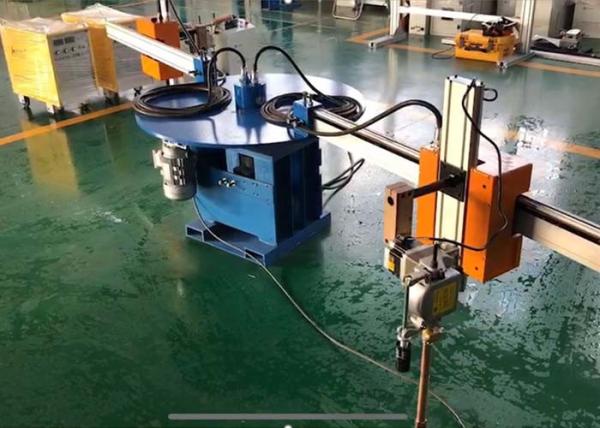

The JH-360DEG is composed of a rotary platform, first-stage RV deceleration, second-stage rotary platform and various rotating conductive parts. During the welding, the client shall install his offline welding equipment on JH-360DEG and we will be responsible for the technologies to the control cable interface. The JH-360DEG can input rotation, load-bearing support and conductive link and work with the offline equipment to form a welding unit for automatic mill overlay welding.

3. Composition of Electrical Parts

The electrical part is mainly controlled through the frequency converter, stepless speed regulation and circulating water cooling power control.

4. Specification

Diameter Range of Overlay Welding 100mm-6500mm
Height of Welding Pipes 500mm-1500mm
Diameter of Welding Wire φ1.2-φ2.8mm(Flux-Cored Wire)
Overlay Welding Thickness of Monolayer 2.5-6.5mm
Rotating Speed 0-1500mm/rpm

Carbon Steel 6500mm Rotary Pipe Cladding Machines

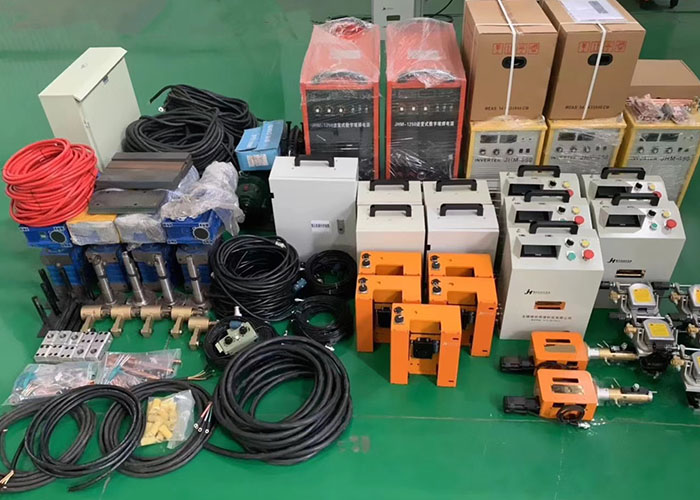

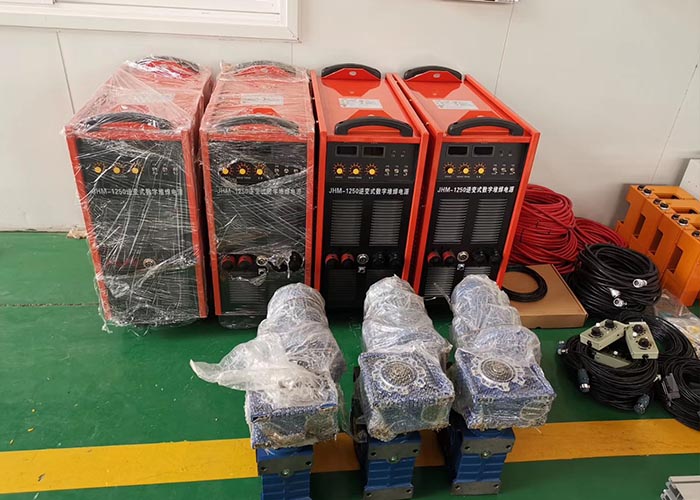

5. Delivery

Carbon Steel 6500mm Rotary Pipe Cladding Machines

Carbon Steel 6500mm Rotary Pipe Cladding Machines

Carbon Steel 6500mm Rotary Pipe Cladding Machines

Carbon Steel 6500mm Rotary Pipe Cladding Machines
