28.5Kw 250mm Min 3mm Pipe Cladding System In Pipeline

  • 1
  • 2

Brand Name : JINHUA

Model Number : JH-380

Place of Origin : WUXI, CHINA

MOQ : 1 Unit

Price : USD+2000-50000+Unit

Payment Terms : T/T

Supply Ability : 30+Units+Per Month

Delivery Time : 15-60 days

Packaging Details : Wooden Box Package

Machine type : Pipe Cladding Machine, Pipe Inner Hardfacing Machine

Condition : New

Type : Welding

Certification : ISO9001

Material : Carbon Steel, Alloy Steel

Warranty : 1 Year

Color : Yellow, Blue, Customized

Voltage : 220V/380V/400V, 220V/380V/415V/440V/customized, 220V50HZ1P, Optional, 380V or 220V/60HZ /3P (Also According To Your local voltage)

After-Sales Service : Engineers available to service machinery overseas, Field installation, commissioning and training, Video technical support, Field maintenance and repair service

Industries : Cement, Steel, Mining, Power, Security, Agriculture, Recycling

Contact Now

Automatic Surface Surfacing Machine In Pipeline​

1. Machine Introduction

JH-380 Inwall Pipe Automatic Welding Machine is a new generation of the automatic overlay welding machine developed by our company, which is featured with a high level of automation, designs conforming to the manual machine operation and simple operation.JH-380 is functioned by the welding parameter memory storage, wireless remote control, automatic location finding, circulating water cooling control with variable frequency, abnormal information alarm and so on against any demand for manual intervention to the welding process of the machine. The machine is controlled by the TECO high-performance PLC and 10.2-inch man-machine touch screen and its offsetting is controlled by synchronous lifting trolley to ensure the accuracy of welding process. Moreover, the machine rotates the pipes by synchronous roller drive, which maximizes the synchronization coefficient between the rotary drive machine and the pipe.

2. Direction for use
JH-380 is functioned by the welding parameter memory storage, wireless remote control, automatic location finding, circulating
water cooling control with variable frequency, abnormal information alarm and so on against any demand for manual intervention to the welding process of the machine.

3. Machine Parameter

Maximum Overlay Welding Length 6000 mm
Overlay Welding Thickness 3-6mm
Allowable Weight 2.0T
Diameter Range of Overlay Welding Φ120-1000mm
Maximum Power 28.5Kw
Water Cooling Control System Variable frequency circulating water cooling
Idle Travel Speed 0-7000mm/min
Elevation of Overlay Welding Torch 0-100mm
Control System The control system adopts Variable frequency + digital system control
Overlay Welding Speed 0-250mm /min
Elevating Mode of Overlay Welding Torch Manual mechanical lifting
Precision Standard of Whole Machine Conforming to JB/T5102-1999
Allowable Material for Overlay Welding Q235 Q345
Linear Positioning Accuracy ±1mm/5m
Velocity Error ±2%

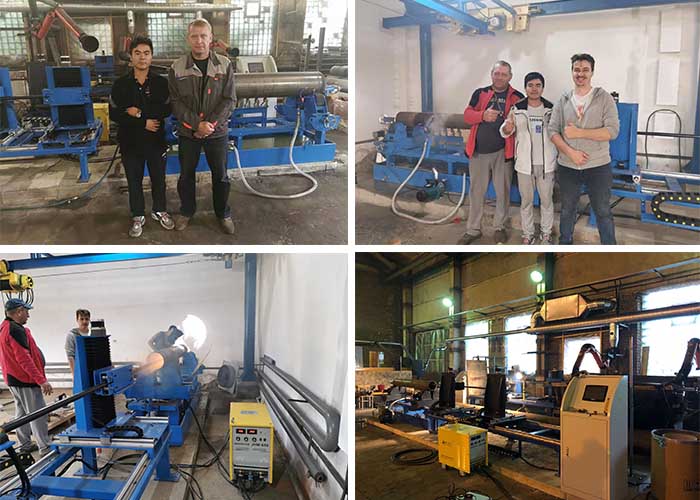

4. Pictures

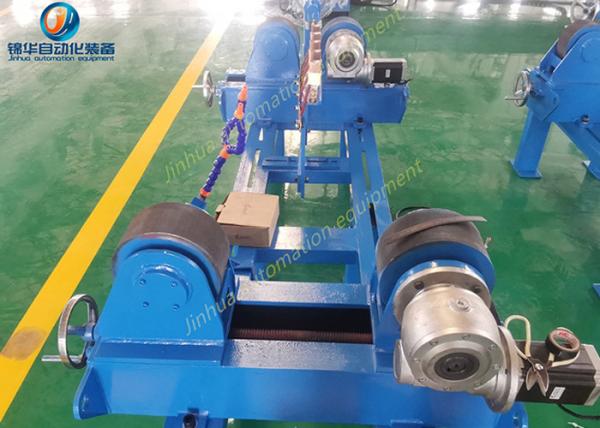

28.5Kw 250mm Min 3mm Pipe Cladding System In Pipeline
