On Site Surfacing Gouging Equipment For Construction

Brand Name : JINHUA

Place of Origin : CHINA

MOQ : 1 Unit

Payment Terms : T/T

Delivery Time : 15-60 days

Packaging Details : Wooden Box Package

Model Number : Jh-350L

Price : USD+5000-50000+Unit

Supply Ability : 30+Unit+per Month

Condition : New

Machine Type : Welding Manipulator

Warranty : 1 YEAR

Key Selling Points : Automatic

Keyword : Resistance Welding Machine

Wire feed rate : 1-9999 mm/min

Style : Enginery

Applicable Industries : Building Material Shops, Manufacturing Plant, Construction works , Energy & Mining

Contact Now

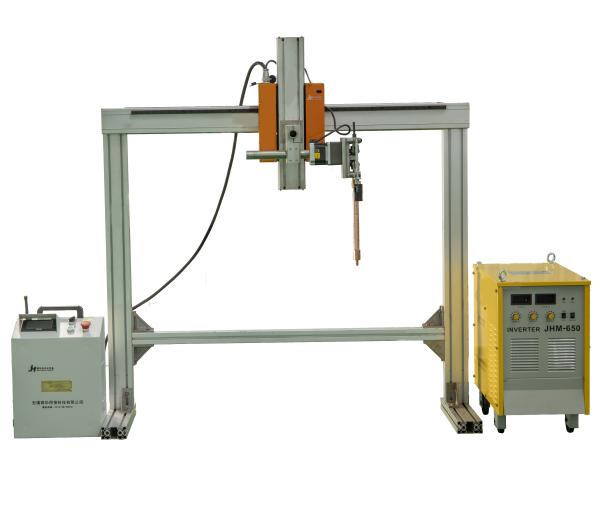

On-Site Automatic Surfacing&gouging JH-350L Equipment

Product Description
Jh-350L can be used for surfacing welding carbon arc air gouging, automatic welding.The equipment adopts digital system control and supports triaxial curve interpolation welding, air gouging and other functions.

Direction for use

JH-350L application fields cover cement, power, steel, mining, petrochemical and other industries, for large vertical mill,coal mill, continuous casting roller, crusher, roller press and other wear resistance equipment wear liner to repair hard surface .

Specification

Model Jh-350L
Weld Process Hotwire TIG
Manipulator Heavy-duty motorized cross-slides
Turntable 8 foot diameter table, 15 ton capacity with slip ring
Standard Power Source Miller Maxstar 700 with Coolmate 3.5 cooler, Maxstar 200 DX
Optional Power Source Other power sources are available
Maximum Height Bore Depth Up to 78.7 in (2000 mm) depending on torch type and vertical slides used
Minimum Weldable Bore 1.77 in (45 mm) diameter
Water Cooled TIG Torch Various fixed and adjustable-angle torch heads available
Welding Speed 7.87 in/min to 17.7 in/min (20 to 45 cm/min)
Air Pressure Requires 3-4 bar / 45-60 psi
Control KEY 1250 PLC Controller
Control Functions Controlled by 15 in TFT HMI or remote pendant
Input Power RDA VCS 700 VCS (controller, manipulator, turntable) - 380 to 480 V, 3 phase, 50/60 Hz
Input Power Miller Power Sources Maxstar 700 and Maxstar 200DX - 380 to 480 V, 3 phase, 50/60 Hz
Input Power Miller Cooler Coolmate 3.5 - 115 VAC 50/60 Hz (from power source)
